Konica Minolta 4 i 1 Netværks-Farvelaserprinter A4 mc 1690MF
Print - Scan - Fax - Kopi
KONICA MINOLTA ER PR. 01.01.2013 OPHØRE MED AT PRODUCERE OG SÆLGE MAGICOLOR OG PAGEPRO PRINTERE, DER ER STADIG USOLGTE PRINTERE PÅ MARKEDET, MEN KONTAKT OS FOR LEVERINGSSTATUS.
FORBRUGSSTOFFER, TONER, DRUMS SÆLGES NATURLIGVIS HER, SÅ MANDLER DU PRINTERTILBEHØR, SÅ KLIK HER.
Kompakt og stille farvelaserprinter fra Konica Minolta
Første udskrift efter 14 sekunder i sort/hvis og 23 sekunder i farver
Hastighed - 20 sort/hvid udskrifter pr min - 5 farve i minuttet
Har NETKORT
Flere specifikationer:
Print method Tandem full colour, A4 laser beam
Print Speed A4: Colour: 5 ppm
Mono: 20 ppm
First page out Colour: 23 sec.
Mono: 14 sec.
Warm-up time Average 30 sec.
Max. resolution 1,200 dpi x 600 dpi x 1 bit
Print volume Recommended: 550 pages per month (average)
Print functions Autozoom, N-up, poster mode, booklet, watermark, quality adjustment, overlay, collating
Copy process
Copy Speed Up to 20 ppm monochrome
Up to 5 ppm colour
First copy out 23 seconds monochrome
52 seconds colour
Copy resolution 600 dpi x 600 dpi x 1 bit
Copies 1 - 99
Zoom range 50 - 200 % (by 1 % step)
Copy functions ID card copy, 2in1, collate, duplex copy
Scan process
Scan technology CCD Image sensor, flat bed
Scan speed Colour: 4.26 ms/line
Monochrome: 1.42 ms/line
Resolution 600 x 600 dpi
Scan size Max. A4, custom formats
Scan Modes Scan-to-Email
Scan-to-FTP
Scan-to-USB
Scan-to-SMB
TWAIN scan
Windows WIA scan
File Formats PDF, TIFF, JPEG
Fax process (Send and receive with internal fax)
Modem speed 33.6 Kbps V.34
Transmit speed 3 sec/page (at V.34)
Fax compression MH, MR, MMR, JBIG
Speed dial 220
Group dial 20 groups (max. 50 stations for one group)
Fax functions Receipt to e-mail, auto redial, broad- cast (maximal 236 destinations), timer transmission, PC-Fax
Hardware and software capabilities
Memory 128 MB
Interface support 10-Base-T/100-Base-TX Ethernet
USB 2.0 (high-speed)
Operating system compatibility
Operating systems Windows 2000, Server 2003 (32/64), XP (32/64), Vista (32/64)
Macintosh OSX 10.2 or later
Paper handling
Paper input Standard: 200 sheets multi manual feed tray
Optional: 500 sheet lower paper feeder (magicolor 1690MF-dt)
Paper output Standard: 100-sheet face down output tray
Optional: 500-sheet lower paper feeder
Media sizes supported A4, A5, B5, letter, legal, envelope C6, envelope DL, custom size (92 - 216 mm x 184 - 356 mm)
Duplexer sizes supported A4
Printable area Approx. 4 mm from all edges
Paper weights Plain paper (60 - 90 g/m²), recycled paper (60 - 90 g/m²), thick paper 1 (91 - 163 g/m²), thick paper 2 (164 - 209 g/m²)
Print media Plain paper, recycled paper, envelope, labels, postcard, thick paper, letterhead
Physical

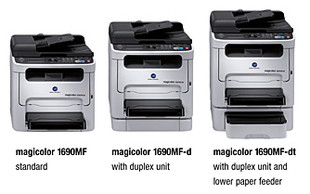

Dimensions (W x D x H in mm) magicolor 1690MF: 405 x 427 x 432 mm
magicolor 1690MF-d: 405 x 451 x 493 mm
magicolor 1690MF-dt: 405 x 565 x 548 mm
Weight magicolor 1690MF: 20.8 kg
magicolor 1690MF-d: 24 kg
magicolor 1690MF-dt: 26.3 kg
Electrical
Input voltage range 220/240 VAC ±10%
Frequency 50/60 Hz ( ±3 %)
average during printing < 410 W (colour)
< 560 W (monochrome)
Standby < 170 W
Energy Save < 14 W
Environmental
Temperature Operating: 10 to 35°C
Humidity Operating: 15 to 85% RH
Noise Level Printing: < 57dB(A)
Standby: < 35dB(A)
Regulatory/Safety conformity Doc, CE Marking, GS, EMC, WEEE, Energy Star (magicolor 1690MF)
Consumables
Pre-installed Toner: Cyan, magenta and yellow toner yield up to 500 pages Black toner yield up to 1,000 pages
Imaging Unit (waste toner bottle included): Black yield up to 45,000 pages Cyan, magenta and yellow yield up to 11,250 pages
Replacements, Standard: Cyan, magenta and yellow toner yield up to 1,500 pages
Imaging unit (waste toner bottle included): Black yield up to 45,000 pages Cyan, magenta and yellow yield up to 11,250 pages
Replacements, High capacity Cyan, magenta, yellow and black toner yield up to 2,500 pages
Maintenance parts
Fuser unit: Yield up to 50,000 sheets
2nd transfer unit Yield up to 50,000 sheets
